Product Information

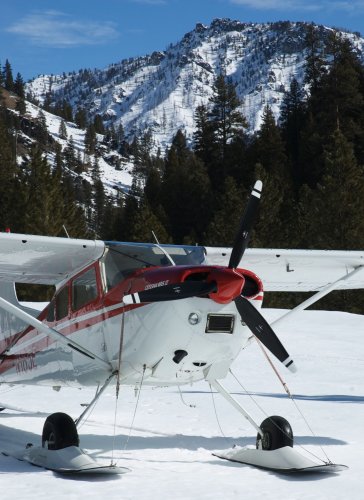

LW-3600 Fixed Penetration Ski
The LW-3600 is a two position fixed penetration ski mounted to the stock landing gear and axles. The fixed penetration ski offers the convenience of wheels for getting off and on the hard surface as well as great performance in the snow. The light weight, yet very durable, fiberglass construction and the large surface area provide loads of flotation even in the deepest snow.
Product Description
The LW-3600 is a two position fixed penetration ski mounted to the stock landing gear and axles. The fixed penetration ski offers the convenience of wheels for getting off and on the hard surface as well as great performance in the snow. The light weight, yet very durable, fiberglass construction and the large surface area provide loads of flotation even in the deepest snow.
Certified On
Cessna 180/185,
Helio Courier, H250, H295, H391B, H395
LW3600-250 for Helio $9985
Requires 8:50 x 6 Tires
Improved with a Fixed Tail Wheel
Basic Specifications
Length: 84 in
Width: 22 in
Height: 9.0 in
Weight: 63 lbs each with rigging
Surface area: 1795 sq. in.
Includes
All Attaching Hardware, Rigging & STC
Tail Ski included on the Helio kit ($9,600 for Helio kit w/ tail ski)
Enquire about LW-3600 Fixed Penetration Ski
